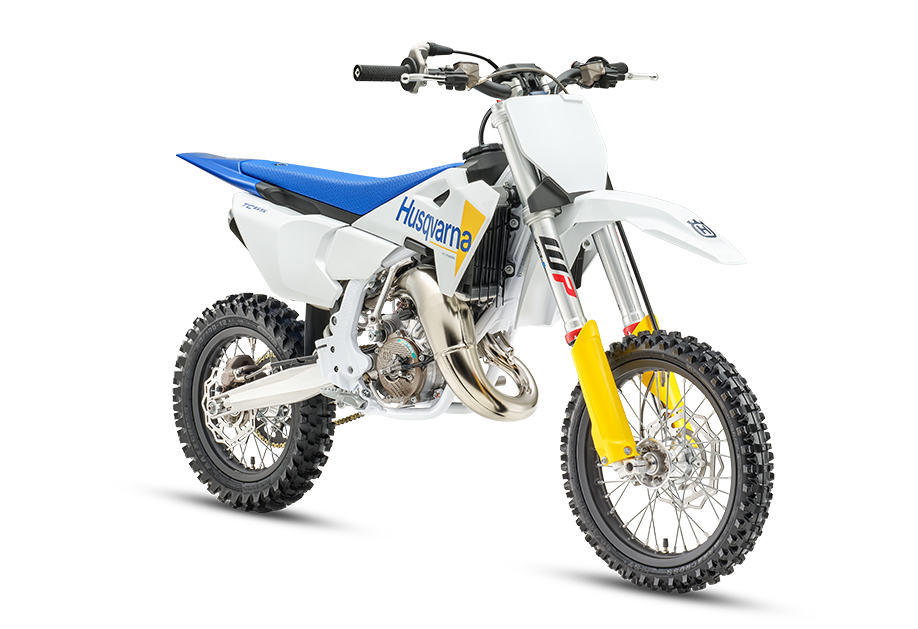

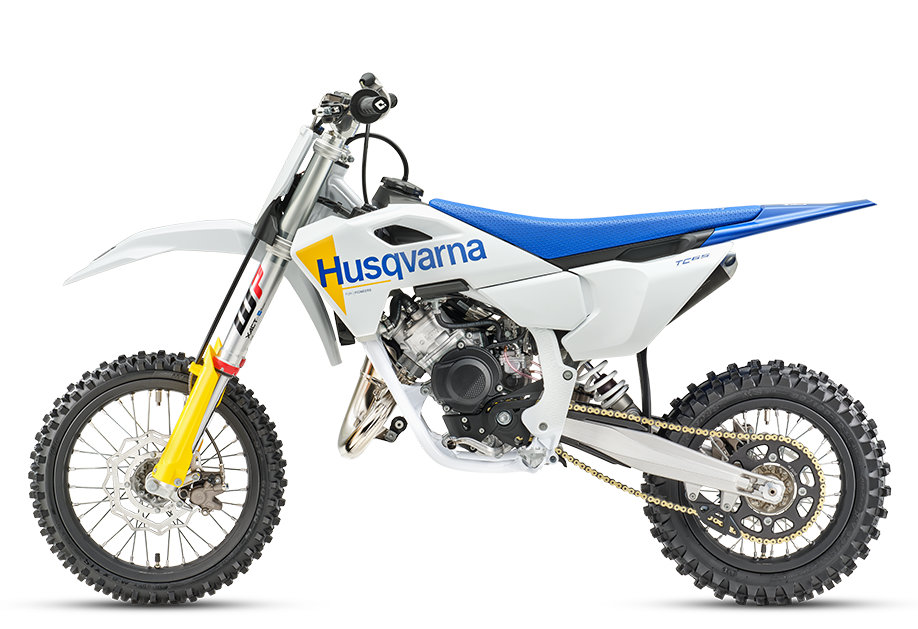

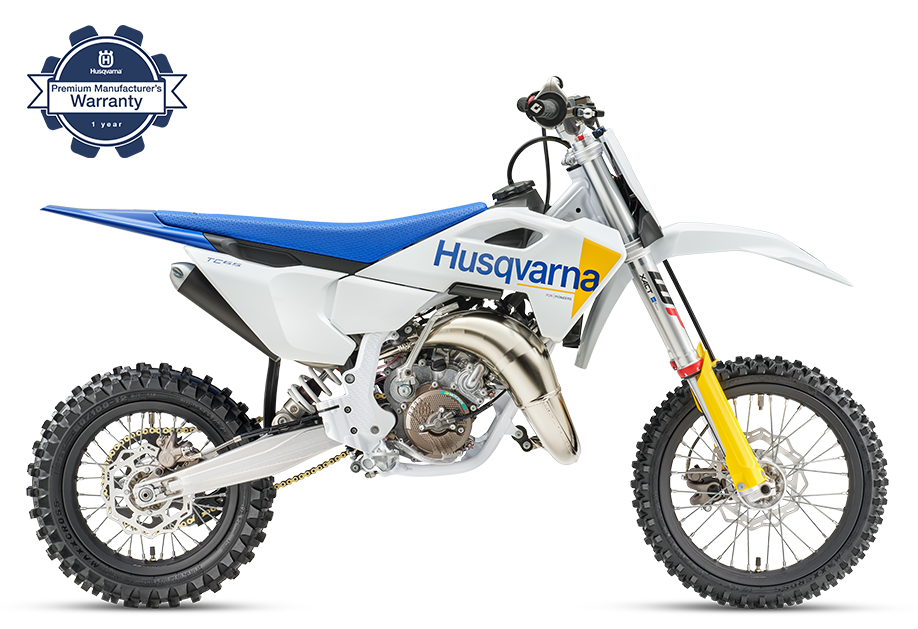

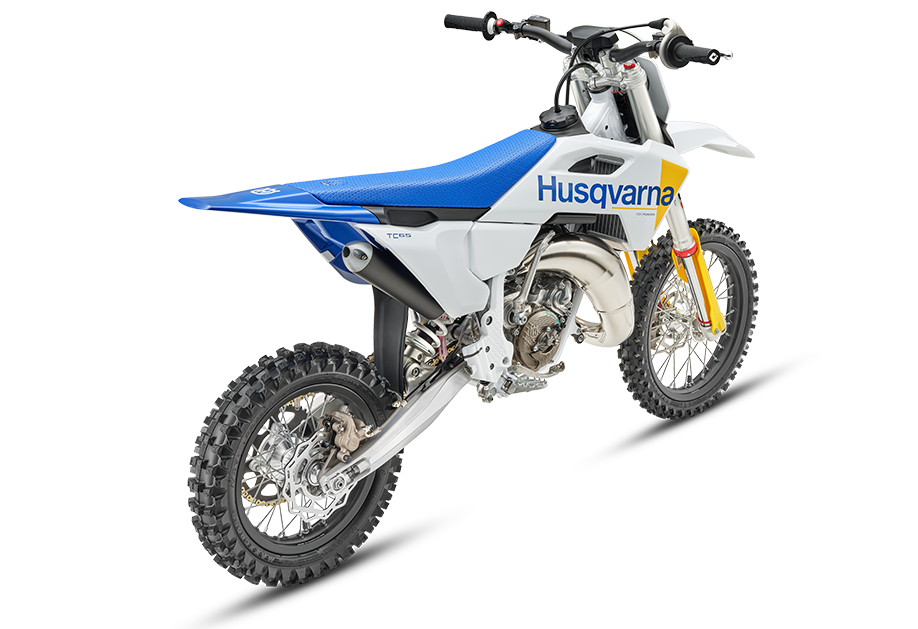

2027 Husqvarna TC 65
The clean and sleek bodywork is scaled down from what is found on the full-size machines and offers the same proven ergonomics. By replicating the design, youngsters will benefit from the larger contact points that allow them to grip the bike tighter with their legs for enhanced control. In addition, a flat seat profile offers unrestricted movement.
Note: Model-specific use, homologation and road-legal status should be confirmed before publishing.
Key Specifications
- Engine: 1-cylinder, 2-stroke engine
- Displacement: 64.9 cm³
- Transmission: 6-speed
- Front suspension: XACT 35 WP Upside-Down fork, Ø 35 mm
- Rear suspension: XACT WP mono shock
- Seat height: 730 mm
- Ground clearance: 259 mm
- Tank capacity: 4.5 l
- Weight without fuel: 54.3 kg
| Brand | Husqvarna |
|---|---|
| Year | |
| Husqvarna Category | Motocross |
| Engine - Primary drive | 23:75 |
| Engine - Transmission | 6-speed |
| Engine - Cooling | Liquid cooled |
| Engine - Secondary gear ratio | 14:48 |
| Engine - Starter | Kickstarter |
| Engine - Stroke | 40.8 mm |
| Engine - Bore | 45 mm |
| Engine - Clutch | Formula hydraulics, multi-disc clutch, Wet |
| Engine - Displacement | 64.9 cm³ |
| Engine - EMS | Mikuni VM 24 |
| Engine - Design | 1-cylinder, 2-stroke engine |
| Chassis - Weight no fuel | 54.3 kg |
| Chassis - Tank capacity | 4.5 l |
| Chassis - Wheelbase | 1142 mm |
| Chassis - Front brake diameter | 198 mm |
| Chassis - Rear brake diameter | 180 mm |
| Chassis - Front brake | Disc brake |
| Chassis - Rear brake | Disc brake |
| Chassis - Chain | 420 |
| Chassis - Frame design | Central-tube frame with double-cradle |
| Chassis - Front suspension | Ø 35 mm, XACT 35 WP Upside-Down fork |
| Chassis - Ground clearance | 259 mm |
| Chassis - Handlebar | Tapered aluminum Ø 28/22/18 mm |
| Chassis - Rear suspension | XACT WP mono shock |
| Chassis - Seat height | 730 mm |
| Chassis - Silencer | Aluminium |
| Chassis - Steering head angle | 64.5 ° |
| Chassis - Rear subframe | Steel / Polyamide Glass Fiber |
| Chassis - Travel front | 215 mm |
| Chassis - Travel rear | 253.5 mm |
| Chassis - Tyre dimensions | 60/100; 80/100 |
| Chassis - Wheels | 1.60 x 14"; 1.60 x 12" |
