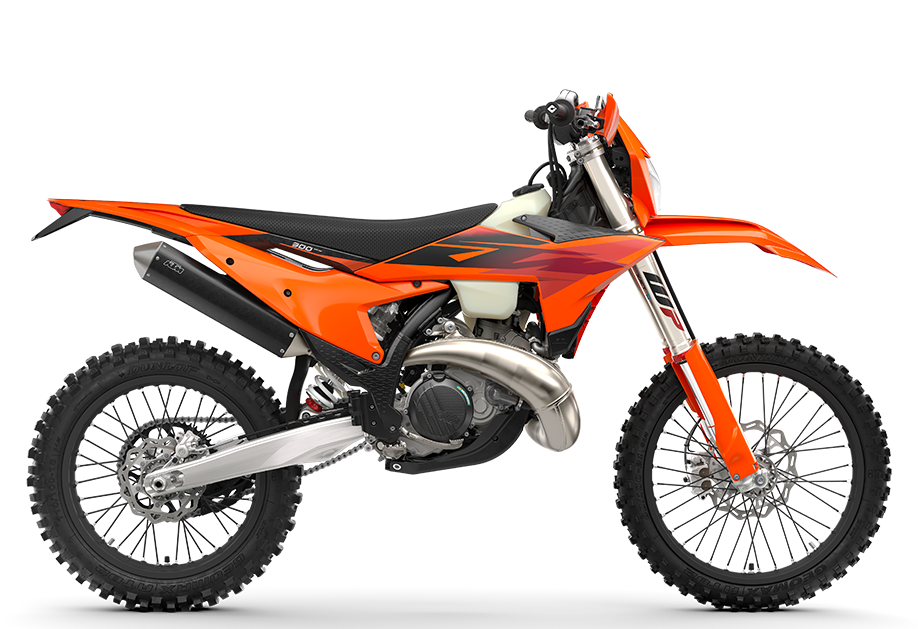

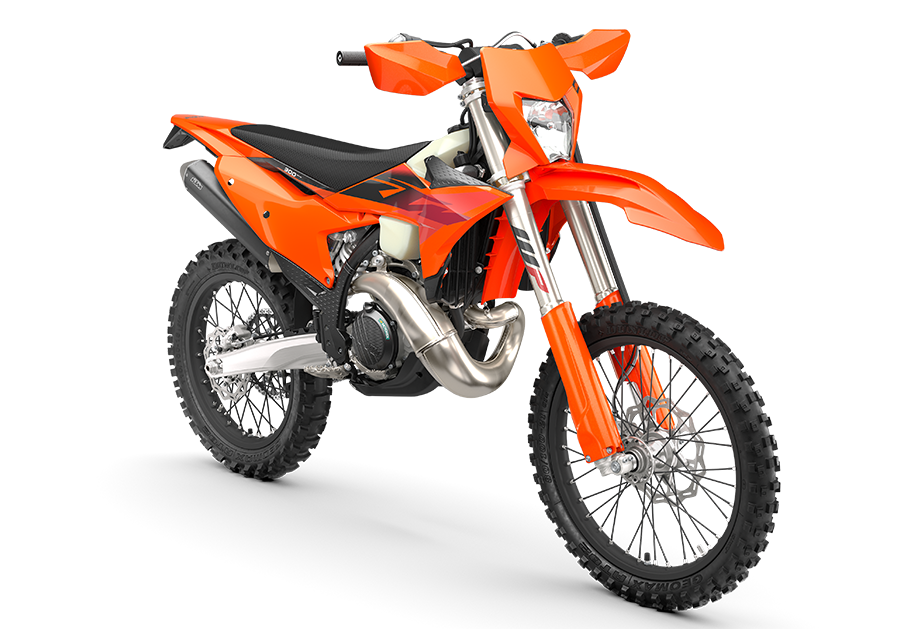

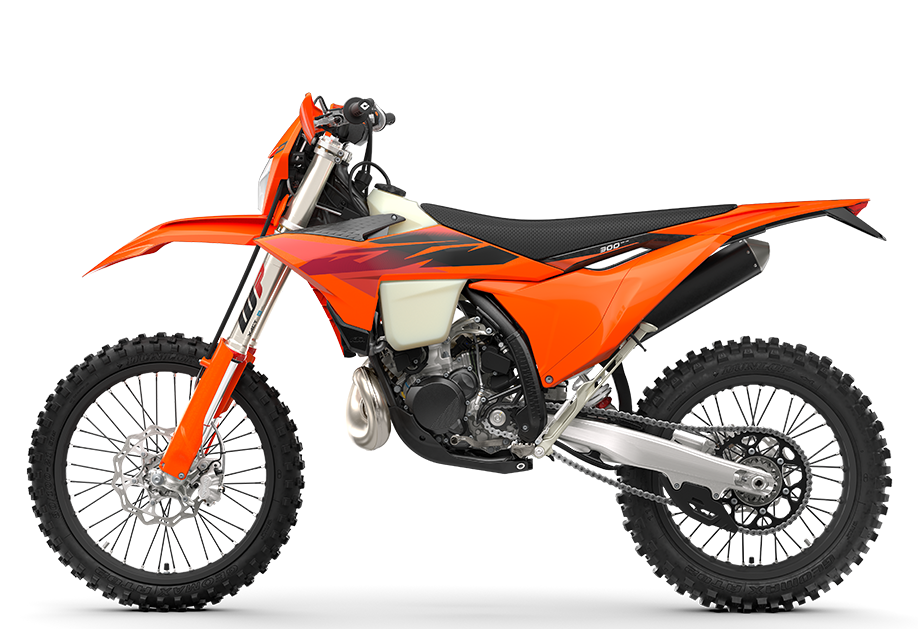

2027 KTM 300 XC-W
The KTM 300 XC-W maintains legendary status as the undisputed King of enduro. Not only does it have the most recognized title at the sharp end of hard enduro, it’s still unmatched when it comes to 2-stroke ingenuity, fury, and downright fun. With a bulletproof, fuel-injected 2-stroke engine churning out masses of low-down torque and top-end fury, it’s the ideal companion when tackling challenging terrain.
Note: Competition-focused offroad model. Confirm the model-specific homologation/road-legal status before listing it as road legal.
Key Specifications
- Engine: 1-cylinder, 2-stroke engine
- Displacement: 293.15 cm³
- Transmission: 6-speed
- Fuel system: Keihin EFI, throttle body 39 mm
- Front suspension: WP XACT-USD, Ø 48 mm
- Rear suspension: WP XPLOR shock absorber with PDS
- Seat height: 963 mm
- Ground clearance: 347 mm
- Tank capacity: 9 l
- Weight without fuel: 104.4 kg
| Brand | KTM |
|---|---|
| Year | |
| Engine - Design | 1-cylinder, 2-stroke engine |
| Engine - Displacement | 293.15 cm³ |
| Engine - Transmission | 6-speed |
| Engine - Fuel mixture | Keihin EFI, throttle body 39 mm |
| Engine - EMS | Vitesco Technologies EMS |
| Engine - Clutch drive teeth | 72 |
| Engine - Primary drive | 26:72 |
| Engine - Clutch | Brembo hydraulics, DDS multi-disc clutch, Wet |
| Engine - Engine cylinder | Single cylinder |
| Engine - Engine stroke | 2-Stroke |
| Chassis - Frame design | Central double-cradle-type 25CrMo4 steel |
| Chassis - Front brake | Disc brake |
| Chassis - Rear brake | Disc brake |
| Chassis - Rear subframe | Aluminum-reinforced polyamide |
| Chassis - Chain | 520 X-Ring |
| Suspension - Front suspension | Ø 48 mm, WP XACT-USD |
| Suspension - Rear suspension | WP XPLOR shock absorber with PDS |
| SUSPENSION TRAVEL (FRONT) | 300 mm |
| SUSPENSION TRAVEL (REAR) | 310 mm |
| Suspension - Front adjustment | Compression and rebound adjustable |
| Suspension - Rear adjustment | Compression and rebound adjustable, Preload Adjuster |
| Dimensions - Seat height | 963 mm |
| Dimensions - Ground clearance | 347 mm |
| Dimensions - Tank capacity | 9 l |
| Dimensions - Weight no fuel | 104.4 kg |
