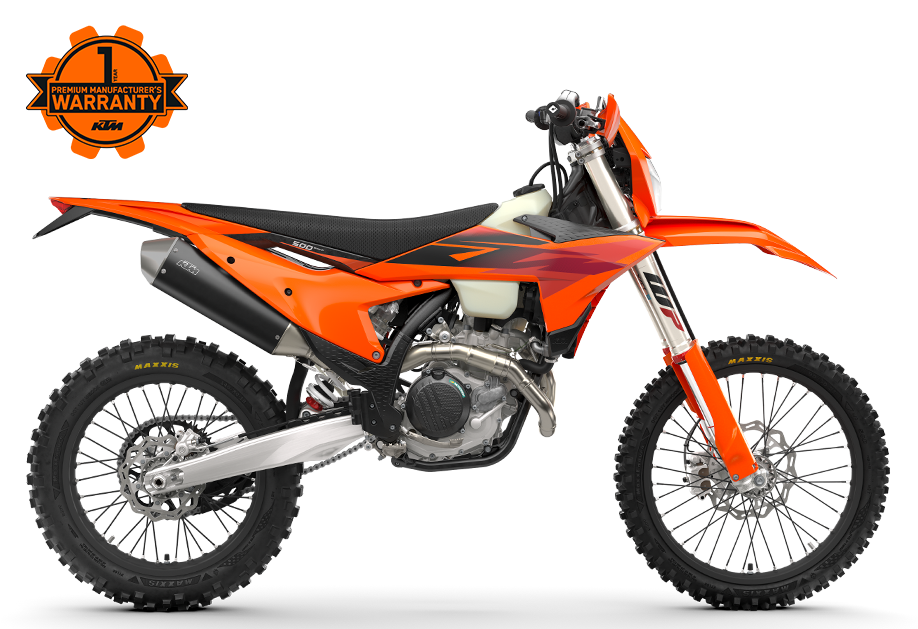

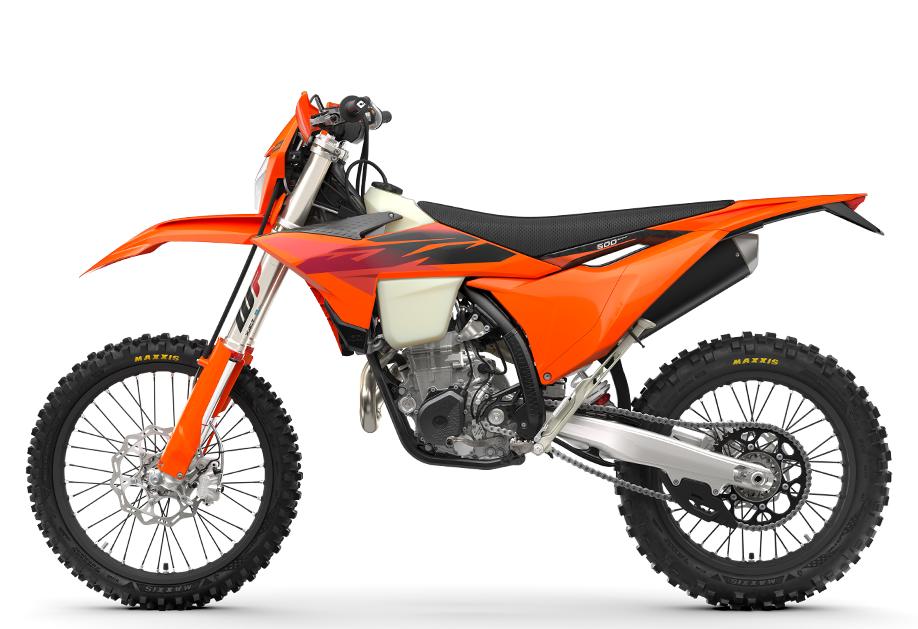

2027 KTM 500 EXC-F
Heading off to explore an abandoned town? Done. Churning dirt in a forest? Easy. Charging through the deep sandy deserts? Let’s go! The KTM 500 EXC-F doesn’t shy away from anything. Churning out hp, and built around a lightweight frame with best-in-class suspension, this large-displacement powerhouse is surprisingly usable, making the KTM 500 EXC-F the ultimate half-liter weapon in anyone’s Enduro arsenal.
Note: Competition-focused offroad model. Confirm the model-specific homologation/road-legal status before listing it as road legal.
Key Specifications
- Engine: 1-cylinder, 4-stroke engine
- Displacement: 510.9 cm³
- Transmission: 6-speed
- Fuel system: Keihin EFI, throttle body 42 mm
- Front suspension: WP XACT-USD, Ø 48 mm
- Rear suspension: WP XPLOR shock absorber with PDS
- Seat height: 963 mm
- Ground clearance: 347 mm
- Tank capacity: 8.5 l
- Weight without fuel: 108.2 kg
| Brand | KTM |
|---|---|
| Year | |
| Engine - Design | 1-cylinder, 4-stroke engine |
| Engine - Displacement | 510.9 cm³ |
| Engine - Transmission | 6-speed |
| Engine - Fuel mixture | Keihin EFI, throttle body 42 mm |
| Engine - EMS | Keihin EMS |
| Engine - Clutch drive teeth | 72 |
| Engine - Primary drive | 29:72 |
| Engine - Clutch | Brembo hydraulics, DDS multi-disc clutch, Wet |
| Engine - Engine cylinder | Single cylinder |
| Engine - Engine stroke | 4-Stroke |
| Chassis - Frame design | Central double-cradle-type 25CrMo4 steel |
| Chassis - Front brake | Disc brake |
| Chassis - Rear brake | Disc brake |
| Chassis - Rear subframe | Aluminum-reinforced polyamide |
| Chassis - Chain | 520 X-Ring |
| Suspension - Front suspension | Ø 48 mm, WP XACT-USD |
| Suspension - Rear suspension | WP XPLOR shock absorber with PDS |
| SUSPENSION TRAVEL (FRONT) | 300 mm |
| SUSPENSION TRAVEL (REAR) | 310 mm |
| Suspension - Front adjustment | Compression and rebound adjustable |
| Suspension - Rear adjustment | Compression and rebound adjustable, Preload Adjuster |
| Dimensions - Seat height | 963 mm |
| Dimensions - Ground clearance | 347 mm |
| Dimensions - Tank capacity | 8.5 l |
| Dimensions - Weight no fuel | 108.2 kg |
