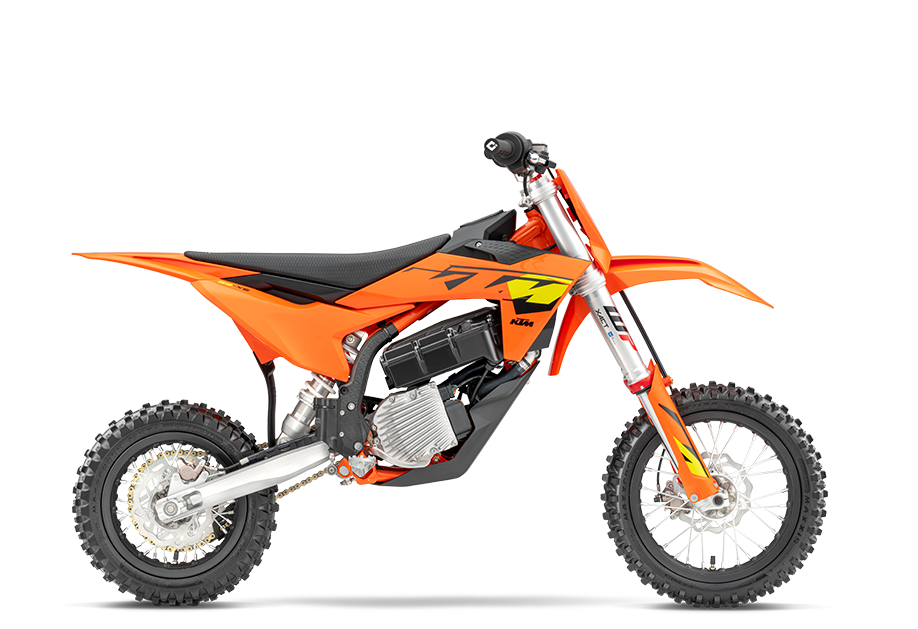

2027 KTM SX-E 5
The KTM SX-E 5 represents the latest generation of advanced all-electric mini-crossers, aimed at both beginner and competitive junior racers. Setting the benchmark in adjustable ergonomics, the KTM SX-E 5 is a high-quality, real-world READY TO RACE alternative to the petrol-powered 50 cc engine. The KTM SX-E 5 is not a toy: this is a bona fide platform for juniors who are finding all the joys of having a throttle in their right hand without the complications of emissions, complex maintenance, and noise. Whether riding, practicing, or racing, the fresh KTM SX-E 5 is both everything they ever wanted and everything they’ll ever need – proudly designed, developed, and produced in Austria.
Key Specifications
- Front suspension: XACT 35 WP Upside-Down fork, Ø 35 mm
- Rear suspension: XACT WP mono shock
- Seat height: 682 mm
- Ground clearance: 259 mm
| Brand | KTM |
|---|---|
| Year | |
| KTM Category | Electric |
| Engine - Electric motor | 48 V – BLDC motor with outer rotor |
| Engine - Max. power | 5 kW / 3, 900 rpm |
| Engine - Torque | 13.8 Nm |
| Engine - Max. motor speed | 6000 rpm |
| Engine - Battery capacity | 21 Ah |
| Engine - Charging time 100 % | 70 min. |
| Engine - Rated output | 2 kW / 3, 200 rpm |
| Engine - Secondary gear ratio | 8:46 |
| Engine - Traction battery | Lithium-Ion KTM PowerPack |
| Engine - Charger line voltage | 80-240 V/50-60 Hz |
| Engine - Charging power | 900 W |
| Engine - Charging time 80 % | 45 min. |
| Chassis - Frame design | Chrome-molybdenum steel central-tube frame |
| Chassis - Rear subframe | Glass fiber reinforced plastic |
| Chassis - Handlebar | Tapered aluminum Ø 28/22/18 mm |
| Chassis - Front brake | Disc brake |
| Chassis - Rear brake | Disc brake |
| Chassis - Front brake diameter | 160 mm |
| Chassis - Rear brake diameter | 160 mm |
| Chassis - Brake diameters F/R | 160 / 160 mm |
| Wheels - 1.5 x 12"; 1.6 x 10" | Tyre width (front) |
| Wheels - 60 | Tyre height (front) |
| Wheels - 100 | Tyre width (rear) |
| Wheels - 2.75 | Chain |
| Wheels - 415, Non-sealed | Steering head angle |
| Suspension - Front suspension | Ø 35 mm, XACT 35 WP Upside-Down fork |
| Suspension - Rear suspension | XACT WP mono shock |
