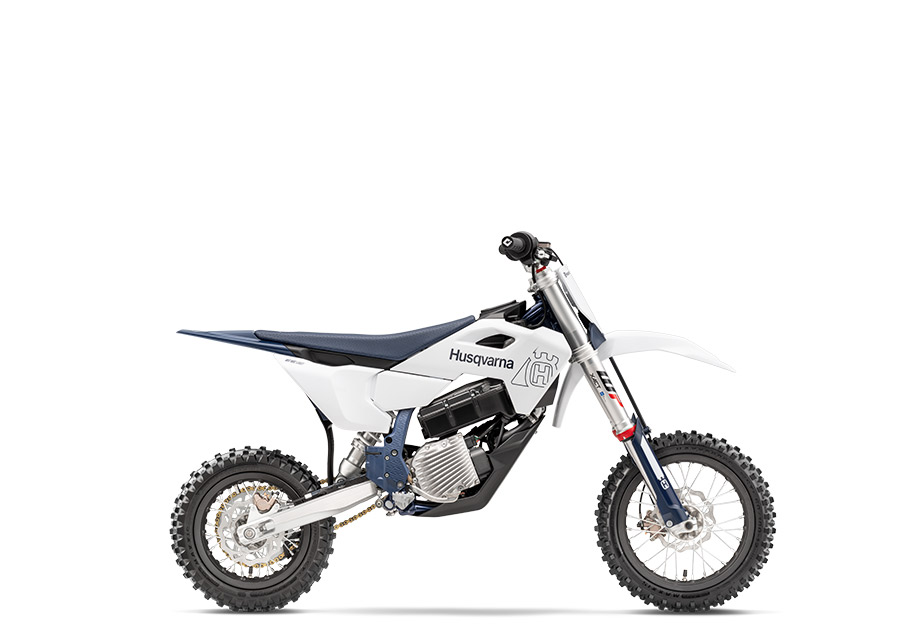

2027 Husqvarna EE 5
To extend the running time and maintain optimal performance, the EE 5 motor is now water cooled. By introducing this technology, the cooling system has enabled a 30% longer running time with no loss of power. The water pump is controlled by the battery and starts when any ride mode is engaged. Engineered to be slim and extremely compact, the permanent magnet motor is designed specifically for the EE 5 and offers a peak power output of 5 kW to rival its combustion-engine competition. The electric motor is largely maintenance free thanks to its water and dust proof construction while six ride modes enable a customisable power delivery based on rider ability.
Note: Model-specific use, homologation and road-legal status should be confirmed before publishing.
Key Specifications
- Transmission: Single speed transmission
- Front suspension: XACT 35 WP Upside-Down fork, Ø 35 mm
- Rear suspension: XACT WP mono shock
- Seat height: 674 mm
- Ground clearance: 259 mm
| Brand | Husqvarna |
|---|---|
| Year | |
| Husqvarna Category | Electric |
| Engine - Rated output | 2 kW / 3, 200 rpm |
| Engine - Torque | 13.8 Nm |
| Engine - Transmission | Single speed transmission |
| Engine - Traction battery | Lithium-Ion KTM PowerPack |
| Engine - Charger line voltage | 80-240 V/50-60 Hz |
| Engine - Charging input | Quick charging 5 A @ 230 V (AC) |
| Engine - Charging power | 900 W |
| Engine - Charging time 100 % | 70 min. |
| Engine - Charging time 80 % | 45 min. |
| Engine - Cooling | Liquid cooled |
| Engine - Energy content | 0.907 kWh |
| Engine - Electric motor | 48 V – BLDC motor with outer rotor |
| Engine - Secondary gear ratio | 08:46 |
| Engine - Max. motor speed | 6000 rpm |
| Engine - Max. power | 5 kW / 3, 900 rpm |
| Chassis - Wheelbase | 1028 mm |
| Chassis - Front brake diameter | 160 mm |
| Chassis - Rear brake diameter | 160 mm |
| Chassis - Front brake | Disc brake |
| Chassis - Rear brake | Disc brake |
| Chassis - Chain | 415, Non-sealed |
| Chassis - Frame design | Chrome-molybdenum steel central-tube frame |
| Chassis - Front suspension | Ø 35 mm, XACT 35 WP Upside-Down fork |
| Chassis - Ground clearance | 259 mm |
| Chassis - Rear suspension | XACT WP mono shock |
| Chassis - Seat height | 674 mm |
| Chassis - Steering head angle | 66 ° |
| Chassis - Rear subframe | Glass fiber reinforced plastic |
| Chassis - Travel front | 205 mm |
| Chassis - Travel rear | 193 mm |
| Chassis - Tyre dimensions | 60/100; 2.75/10 |
| Chassis - Weight | 40.5 kg |
| Chassis - Wheels | 1.50 x 12"; 1.60 x 10" |
| Wheelbase |
