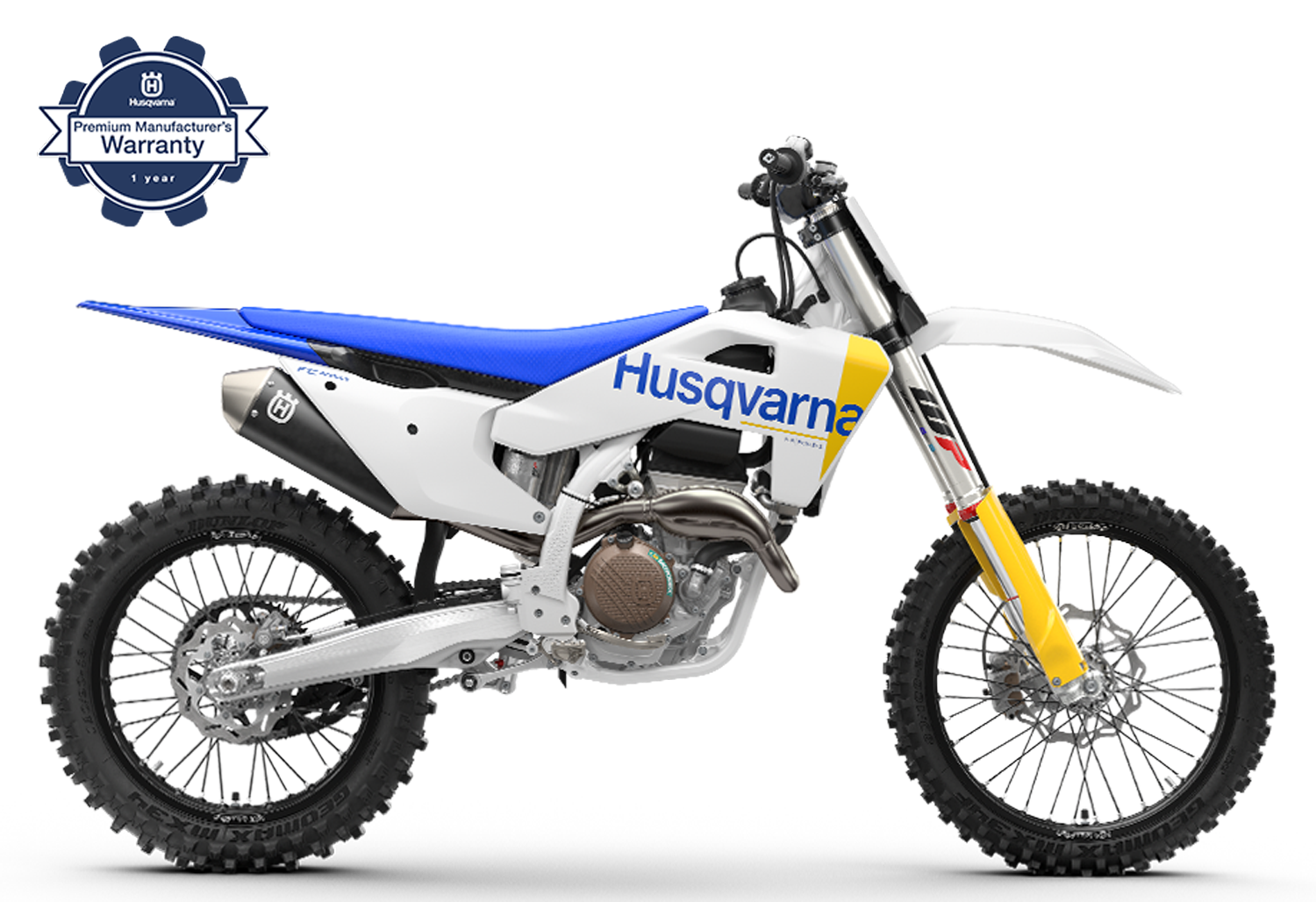

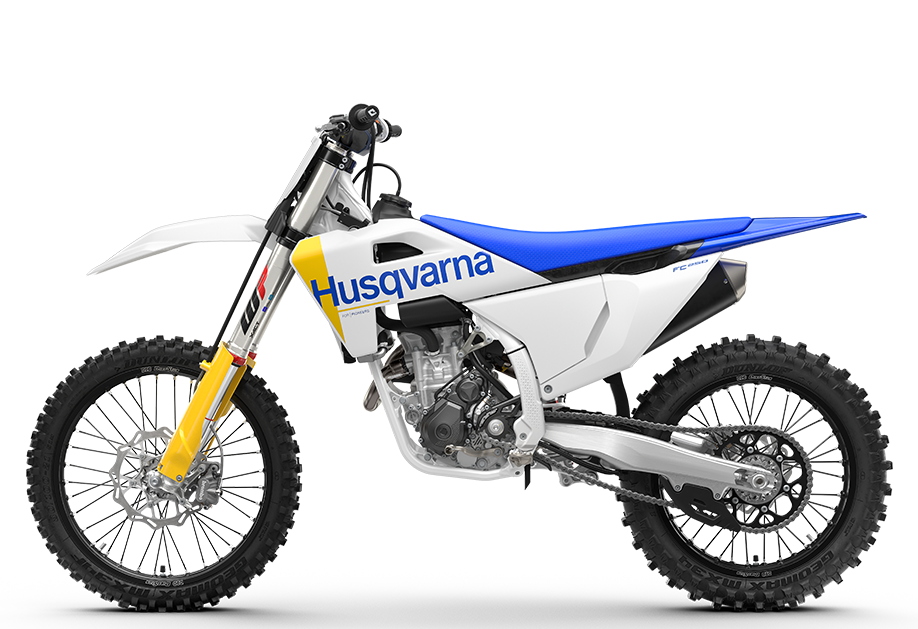

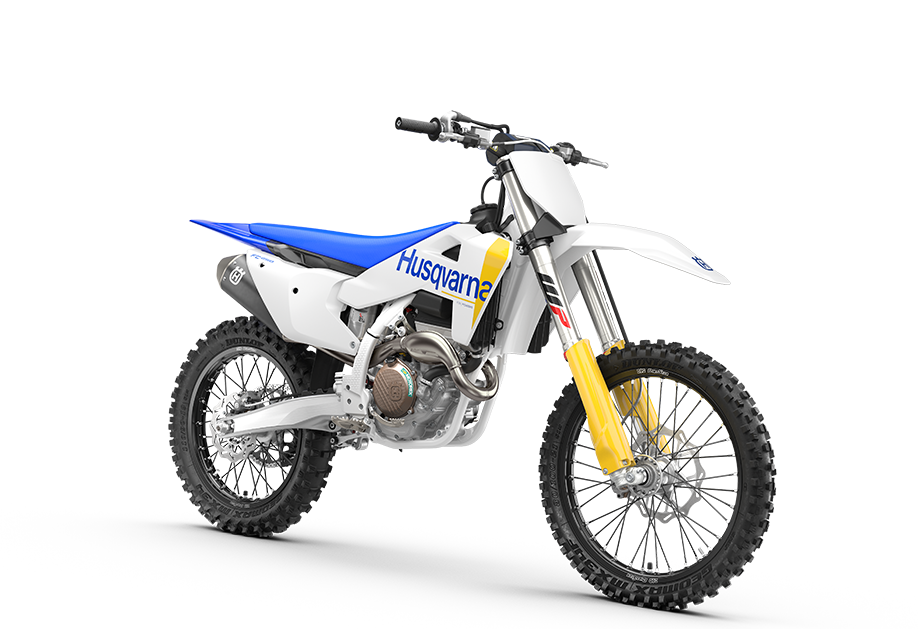

2027 Husqvarna FC 250
Engineered to ensure class-leading performance and handling characteristics, all major engine components and shaft arrangements are carefully positioned closer to the centre of gravity to reduce the effects of rotational inertia. The 250 cc 4-stroke 47 hp engine is also considerably light and tips the scales at just over 26 kg. The FC 250 engine remains remarkably powerful with an increased power output and impressive torque to suit riders of all abilities.
Note: Model-specific use, homologation and road-legal status should be confirmed before publishing.
Key Specifications
- Engine: 1-cylinder, 4-stroke engine
- Displacement: 249.9 cm³
- Transmission: 5-speed
- Fuel system: Keihin EFI, throttle body 44 mm
- Front suspension: WP XACT-USD, Ø 48 mm
- Rear suspension: WP XACT Monoshock with linkage
- Seat height: 946 mm
- Ground clearance: 336 mm
- Tank capacity: 7.2 l
- Weight without fuel: 101.7 kg
| Brand | Husqvarna |
|---|---|
| Year | |
| Husqvarna Category | Motocross |
| Engine - Primary drive | 24:72 |
| Engine - Transmission | 5-speed |
| Engine - Battery capacity | 2 Ah |
| Engine - Cooling | Liquid cooled |
| Engine - Secondary gear ratio | 14:51 |
| Engine - Starter | Electric starter |
| Engine - Stroke | 48.5 mm |
| Engine - Bore | 81 mm |
| Engine - Clutch | Brembo hydraulics, Wet multi-disc DS clutch |
| Engine - Compression ratio | 14.5 |
| Engine - Displacement | 249.9 cm³ |
| Engine - EMS | Keihin EMS |
| Engine - Design | 1-cylinder, 4-stroke engine |
| Engine - Fuel mixture | Keihin EFI, throttle body 44 mm |
| Chassis - Weight no fuel | 101.7 kg |
| Chassis - Tank capacity | 7.2 l |
| Chassis - Wheelbase | 1490 mm |
| Chassis - Front brake diameter | 260 mm |
| Chassis - Rear brake diameter | 220 mm |
| Chassis - Front brake | Disc brake |
| Chassis - Rear brake | Disc brake |
| Chassis - Chain | 520, Non-sealed |
| Chassis - Frame design | Central double-cradle-type 25CrMo4 steel |
| Chassis - Front suspension | Ø 48 mm, WP XACT-USD |
| Chassis - Ground clearance | 336 mm |
| Chassis - Handlebar | Aluminium Ø 28/22 mm, Pro Taper |
| Chassis - Rear suspension | WP XACT Monoshock with linkage |
| Chassis - Seat height | 946 mm |
| Chassis - Silencer | Aluminium |
| Chassis - Steering head angle | 63.9 ° |
| Chassis - Rear subframe | Aluminum-reinforced polyamide |
| Chassis - Travel front | 305 mm |
| Chassis - Travel rear | 293 mm |
| Chassis - Tyre dimensions | 80/100; 110/90 |
| Chassis - Wheels | 1.6 x 21"; 2.15 x 19" |
