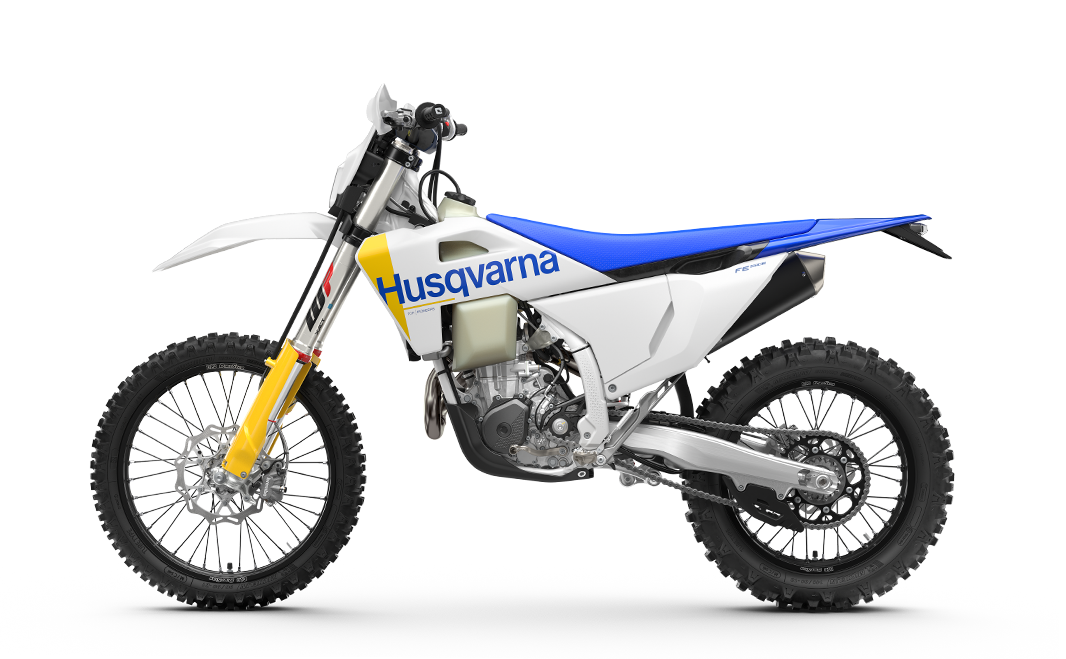

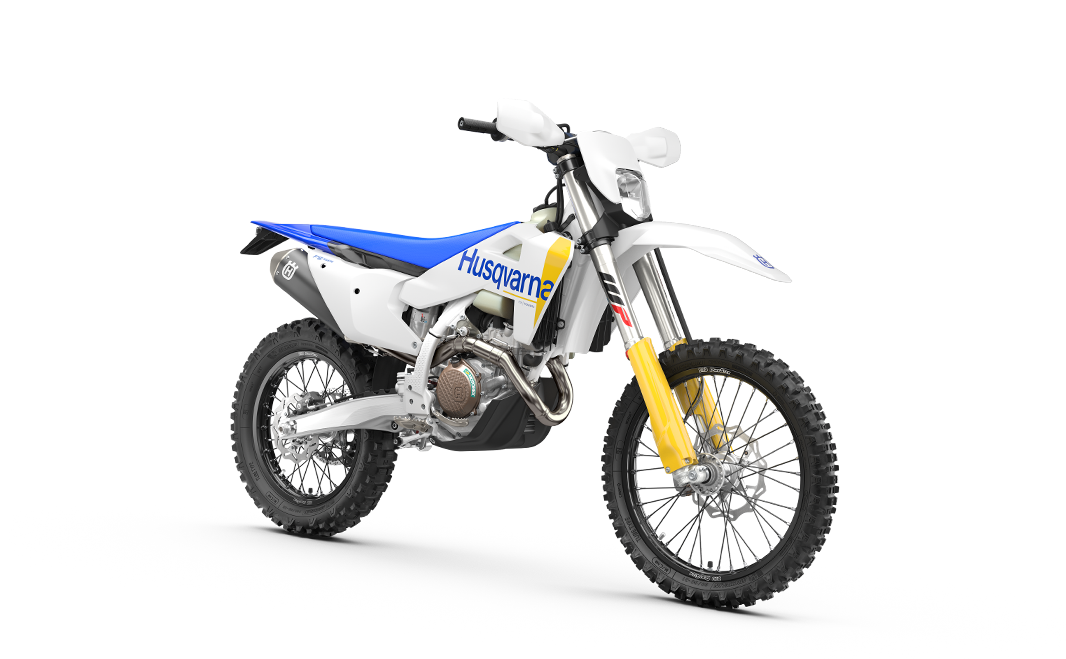

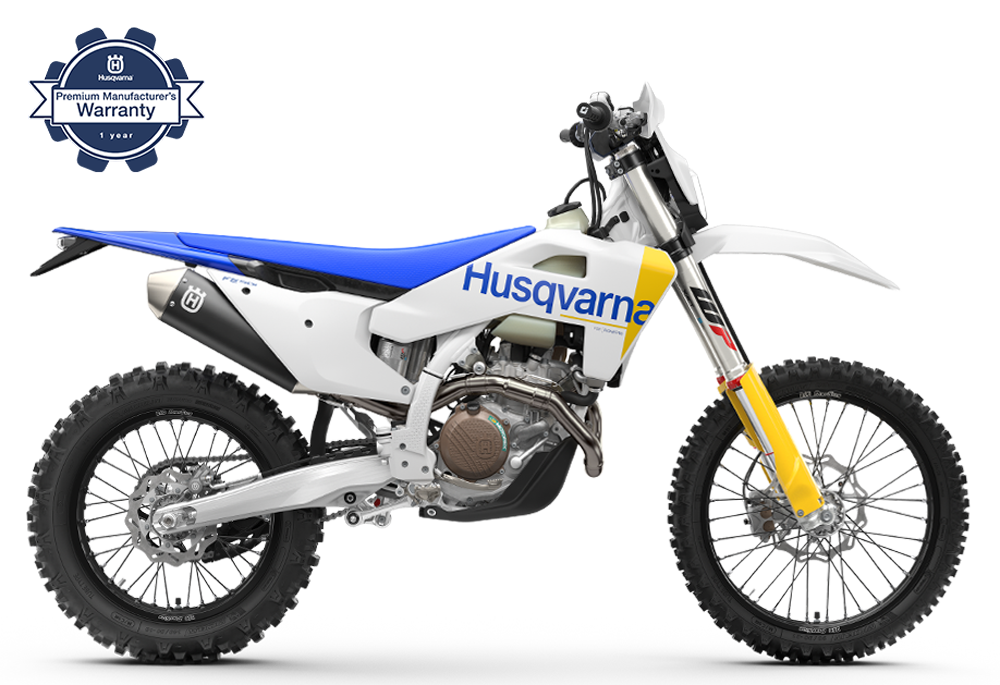

2027 Husqvarna FE 501
The FE 501 engine is the most powerful model in the Husqvarna Motorcycles FE line-up and benefits from advanced engineering techniques to deliver maximum performance. The engine is positioned in the frame to assist with the anti-squat behaviour of the chassis while also helping to centralise mass. Lightweight at just 29.5 kg, the 4-stroke engine is also powerful with a peak output of 64 hp.
Note: Model-specific use, homologation and road-legal status should be confirmed before publishing.
Key Specifications
- Engine: 1-cylinder, 4-stroke engine
- Displacement: 510.9 cm³
- Transmission: 6-speed
- Fuel system: Keihin EFI, throttle body 42 mm
- Front suspension: WP XACT cartridge Ø 48 mm
- Rear suspension: WP XACT Monoshock with linkage
- Seat height: 952 mm
- Ground clearance: 343 mm
- Tank capacity: 8.0 l
- Weight without fuel: 110.6 kg
| Brand | Husqvarna |
|---|---|
| Year | |
| Husqvarna Category | Enduro |
| Engine - Primary drive | 29:72 |
| Engine - Transmission | 6-speed |
| Engine - Battery capacity | 2 Ah |
| Engine - Cooling | Liquid cooled |
| Engine - Secondary gear ratio | 14:50 |
| Engine - Starter | Electric starter |
| Engine - Stroke | 72 mm |
| Engine - Bore | 95 mm |
| Engine - Clutch | Brembo hydraulics, DDS multi-disc clutch, Wet |
| Engine - Compression ratio | 12.75 |
| Engine - Displacement | 510.9 cm³ |
| Engine - EMS | Keihin EMS |
| Engine - Design | 1-cylinder, 4-stroke engine |
| Engine - Fuel mixture | Keihin EFI, throttle body 42 mm |
| Chassis - Weight no fuel | 110.6 kg |
| Chassis - Tank capacity | 8.0 l |
| Chassis - Wheelbase | 1489 mm |
| Chassis - Front brake diameter | 260 mm |
| Chassis - Rear brake diameter | 220 mm |
| Chassis - Chain | 520 X-Ring |
| Chassis - Frame design | Central double-cradle-type 25CrMo4 steel |
| Chassis - Front suspension | WP XACT cartridge Ø 48 mm |
| Chassis - Ground clearance | 343 mm |
| Chassis - Handlebar | Aluminium Ø 28/22 mm, Pro Taper |
| Chassis - Rear suspension | WP XACT Monoshock with linkage |
| Chassis - Seat height | 952 mm |
| Chassis - Silencer | Aluminium |
| Chassis - Steering head angle | 63.9 ° |
| Chassis - Rear subframe | Aluminum-reinforced polyamide |
| Chassis - Travel front | 300 mm |
| Chassis - Travel rear | 300 mm |
| Chassis - Tyre dimensions | 90/90; 140/80 |
| Chassis - Wheels | 1.60 x 21"; 2.15 x 18" |
