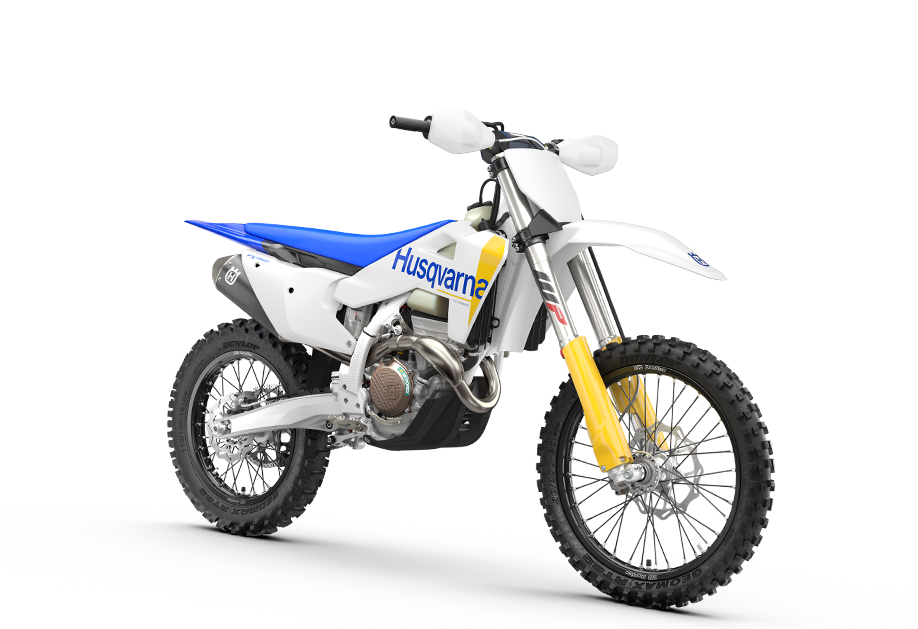

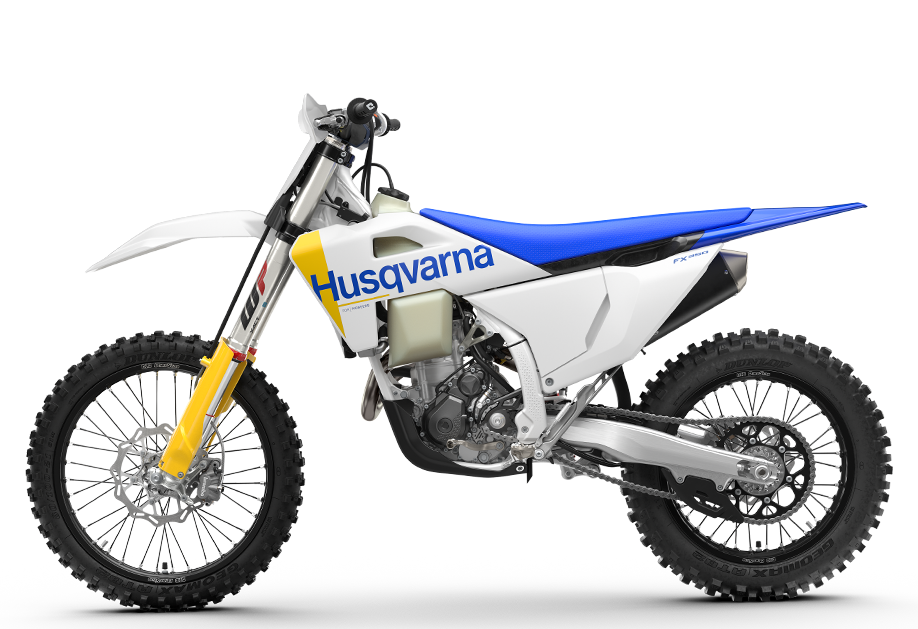

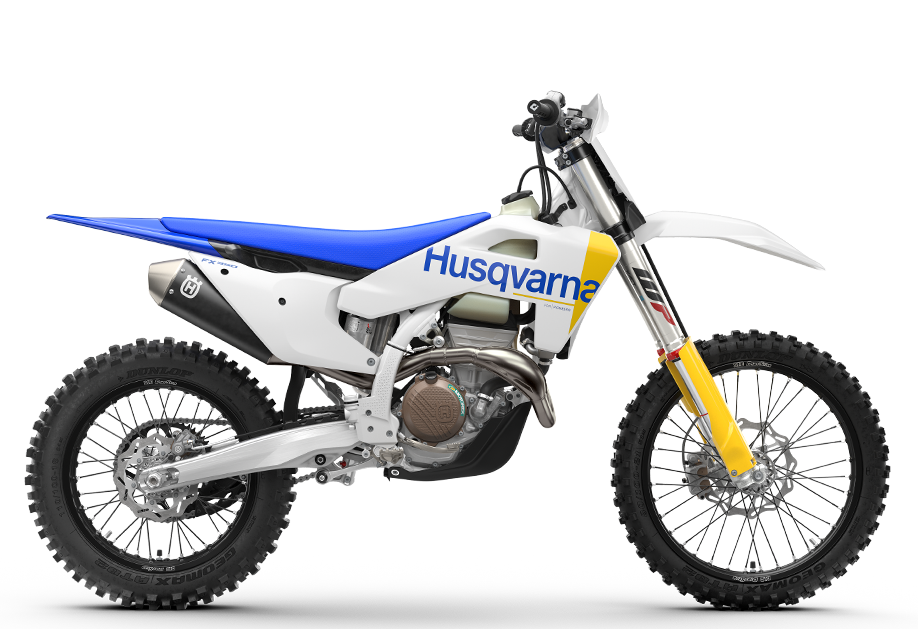

2027 Husqvarna FX 350
The FX 350 engine is designed to deliver maximum performance with all major engine components and shaft arrangements positioned to enhance overall handling. Weighing just 27.2 kg, the 350 cc 4-stroke engine centralises mass and aids the anti-squat behaviour of the whole chassis.
Note: Model-specific use, homologation and road-legal status should be confirmed before publishing.
Key Specifications
- Engine: 1-cylinder, 4-stroke engine
- Displacement: 349.7 cm³
- Transmission: 6-speed
- Fuel system: Keihin EFI, throttle body 44 mm
- Front suspension: WP XACT Closed Cartridge Ø 48 mm
- Rear suspension: WP XACT Monoshock with linkage
- Seat height: 954 mm
- Ground clearance: 343 mm
- Tank capacity: 8.5 l
- Weight without fuel: 104.4 kg
| Brand | Husqvarna |
|---|---|
| Year | |
| Husqvarna Category | Enduro |
| Engine - Primary drive | 24:72 |
| Engine - Transmission | 6-speed |
| Engine - Battery capacity | 2 Ah |
| Engine - Cooling | Liquid cooled |
| Engine - Secondary gear ratio | 14:50 |
| Engine - Starter | Electric starter |
| Engine - Stroke | 57.5 mm |
| Engine - Bore | 88 mm |
| Engine - Clutch | Brembo hydraulics, Wet multi-disc DS clutch |
| Engine - Compression ratio | 14.6 |
| Engine - Displacement | 349.7 cm³ |
| Engine - EMS | Keihin EMS |
| Engine - Design | 1-cylinder, 4-stroke engine |
| Engine - Fuel mixture | Keihin EFI, throttle body 44 mm |
| Chassis - Weight no fuel | 104.4 kg |
| Chassis - Tank capacity | 8.5 l |
| Chassis - Wheelbase | 1493 mm |
| Chassis - Front brake diameter | 260 mm |
| Chassis - Rear brake diameter | 220 mm |
| Chassis - Front brake | Disc brake |
| Chassis - Rear brake | Disc brake |
| Chassis - Chain | 520 X-Ring |
| Chassis - Frame design | Central double-cradle-type 25CrMo4 steel |
| Chassis - Front suspension | WP XACT Closed Cartridge Ø 48 mm |
| Chassis - Ground clearance | 343 mm |
| Chassis - Handlebar | Aluminium Ø 28/22 mm, Pro Taper |
| Chassis - Rear suspension | WP XACT Monoshock with linkage |
| Chassis - Seat height | 954 mm |
| Chassis - Silencer | Aluminium |
| Chassis - Steering head angle | 63.9 ° |
| Chassis - Rear subframe | Aluminum-reinforced polyamide |
| Chassis - Travel front | 300 mm |
| Chassis - Travel rear | 300 mm |
| Chassis - Tyre dimensions | 80/100; 110/100 |
| Chassis - Wheels | 1.6 x 21"; 2.15 x 18" |
