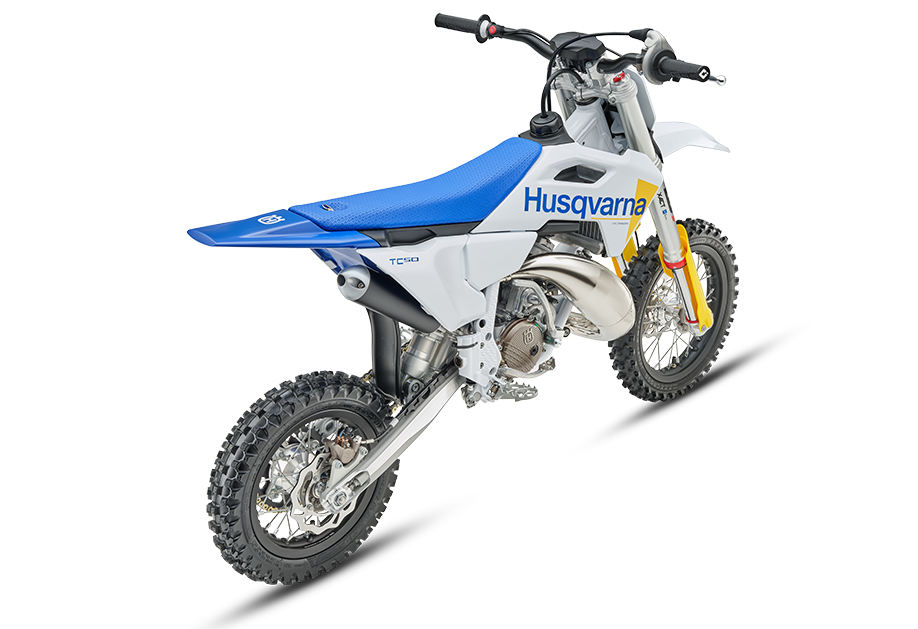

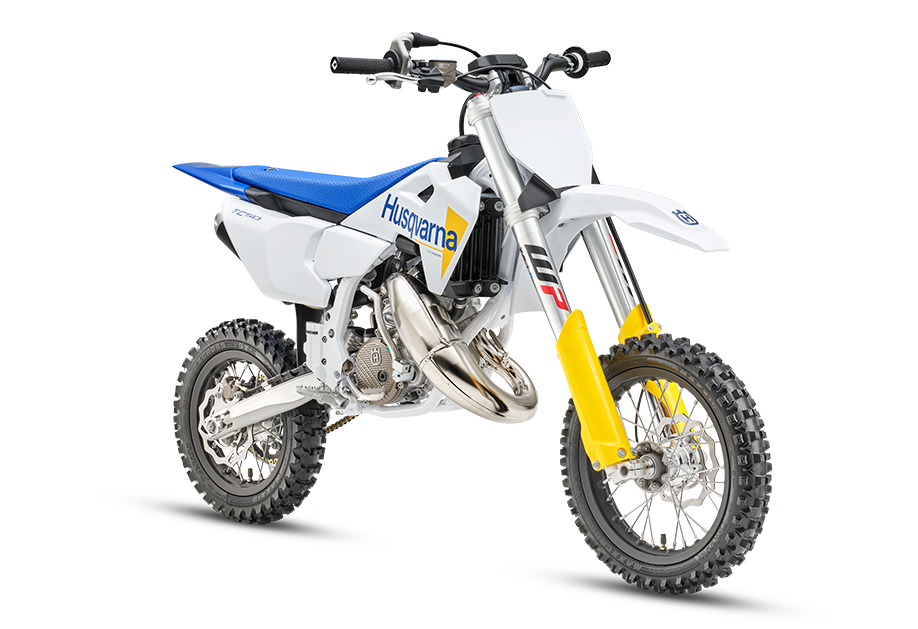

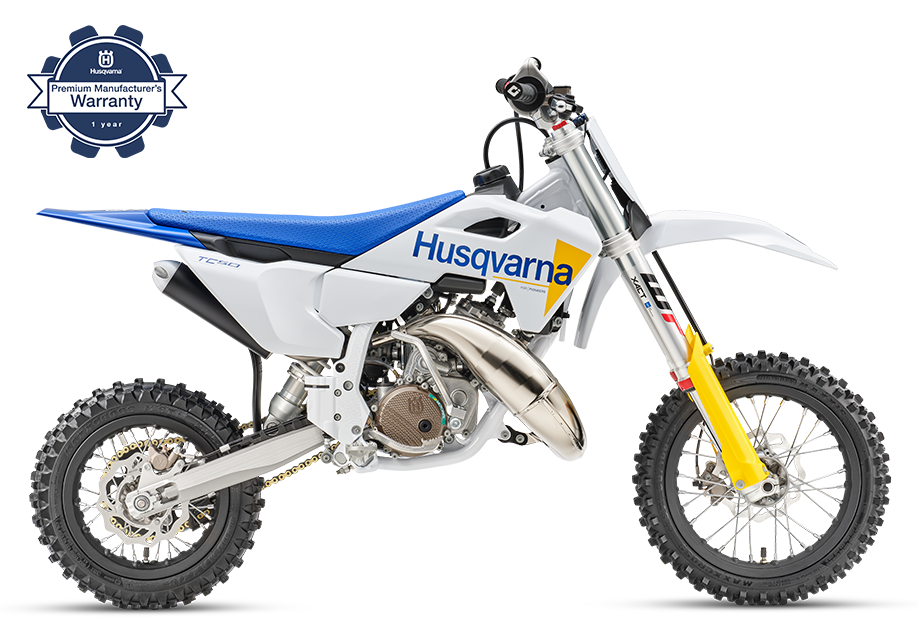

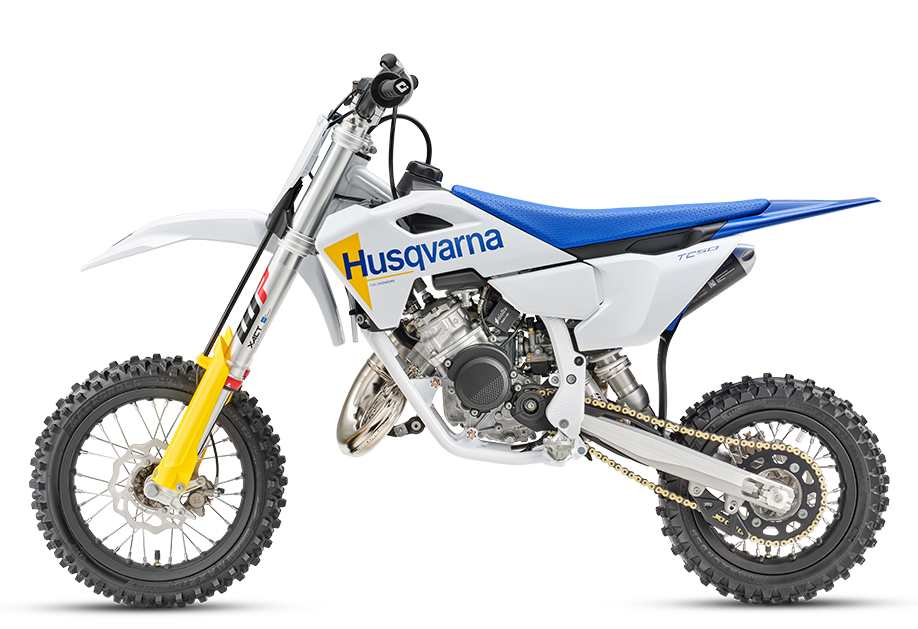

2027 Husqvarna TC 50
The clean and sleek bodywork is scaled down from what is found on the full-size machines and offers the same proven ergonomics. By replicating the design, youngsters will benefit from the larger contact points that allow them to grip the bike tighter with their legs for enhanced control. In addition, a flat seat profile offers unrestricted movement.
Note: Model-specific use, homologation and road-legal status should be confirmed before publishing.
Key Specifications
- Engine: 1-cylinder, 2-stroke engine
- Displacement: 49.9 cm³
- Transmission: Single speed transmission
- Front suspension: XACT 35 WP Upside-Down fork, Ø 35 mm
- Rear suspension: XACT WP mono shock
- Seat height: 645 mm
- Ground clearance: 233 mm
- Tank capacity: 2.35 l
- Weight without fuel: 43.5 kg
| Brand | Husqvarna |
|---|---|
| Year | |
| Husqvarna Category | Motocross |
| Engine - Primary drive | 33:61 |
| Engine - Transmission | Single speed transmission |
| Engine - Cooling | Liquid cooled |
| Engine - Secondary gear ratio | 11:40 |
| Engine - Starter | Kickstarter |
| Engine - Stroke | 40.7 mm |
| Engine - Bore | 39.5 mm |
| Engine - Clutch | Centrifugal clutch (adjustable) |
| Engine - Displacement | 49.9 cm³ |
| Engine - EMS | Dell’Orto PHBG 19 BS |
| Engine - Design | 1-cylinder, 2-stroke engine |
| Chassis - Weight no fuel | 43.5 kg |
| Chassis - Tank capacity | 2.35 l |
| Chassis - Wheelbase | 1026 mm |
| Chassis - Front brake diameter | 160 mm |
| Chassis - Rear brake diameter | 160 mm |
| Chassis - Front brake | Disc brake |
| Chassis - Rear brake | Disc brake |
| Chassis - Chain | 415, Non-sealed |
| Chassis - Frame design | Central-tube frame with double-cradle |
| Chassis - Front suspension | Ø 35 mm, XACT 35 WP Upside-Down fork |
| Chassis - Ground clearance | 233 mm |
| Chassis - Handlebar | Tapered aluminum Ø 28/22/18 mm |
| Chassis - Rear suspension | XACT WP mono shock |
| Chassis - Seat height | 645 mm |
| Chassis - Silencer | Aluminium |
| Chassis - Steering head angle | 66 ° |
| Chassis - Rear subframe | Steel / Polyamide Glass Fiber |
| Chassis - Travel front | 165 mm |
| Chassis - Travel rear | 190.5 mm |
| Chassis - Tyre dimensions | 60/100; 2.75/10 |
| Chassis - Wheels | 1.50 x 12"; 1.60 x 10" |
