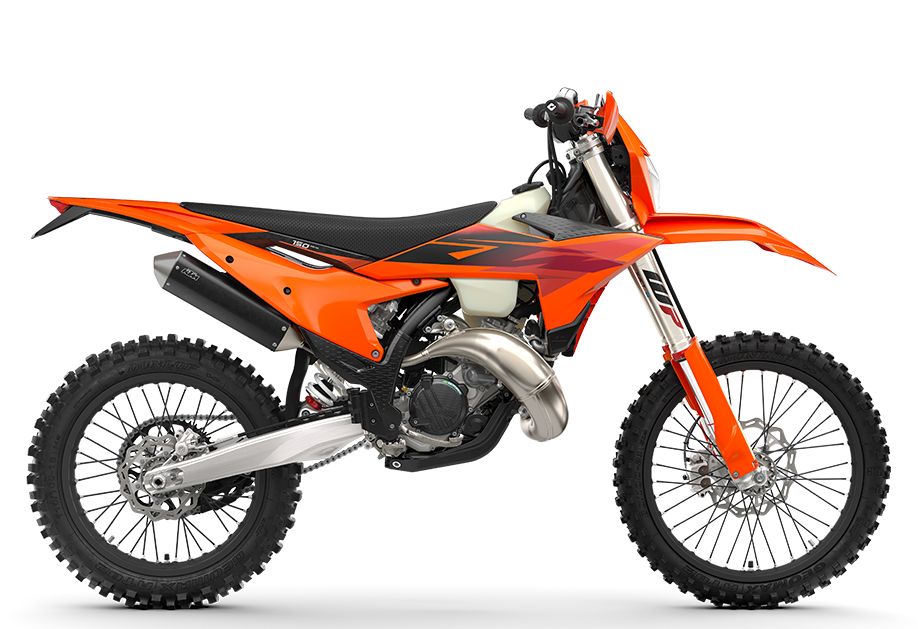

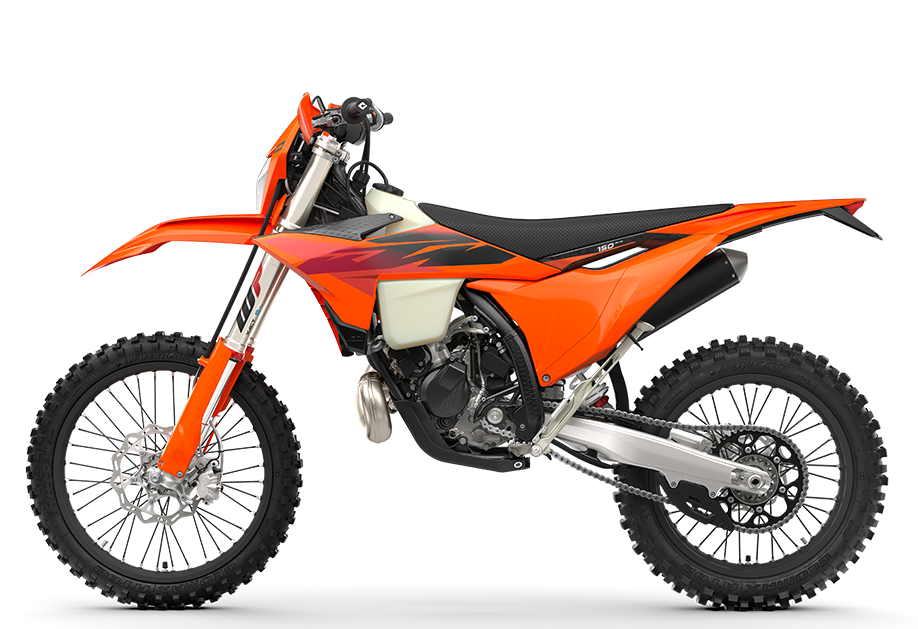

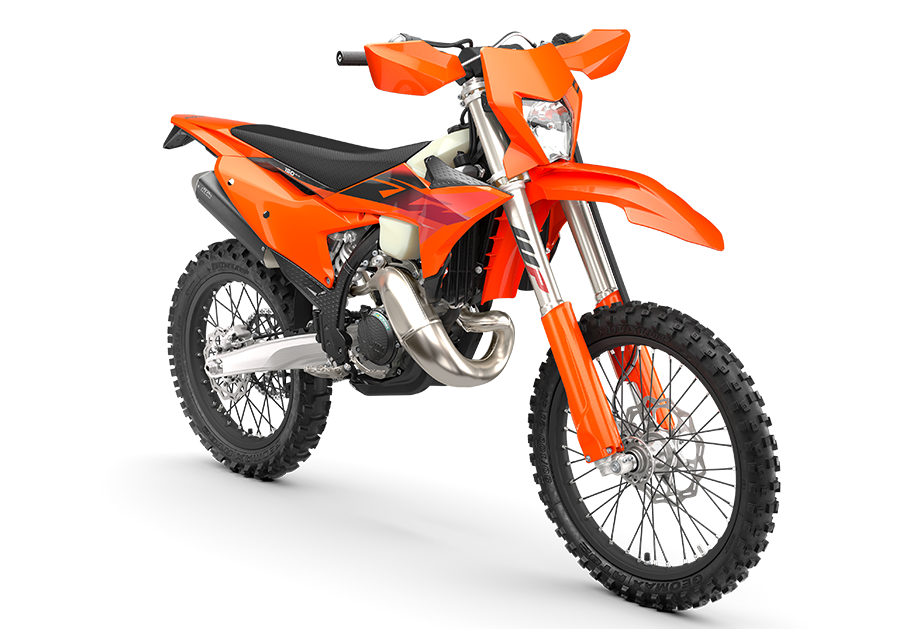

2027 KTM 150 XC-W
The KTM 150 XC-W has earned its place on the hallowed XC-W rostrum. Featuring the same level of equipment as the rest of the KTM Enduro range, it packs enough punch to hang with the big boys while dominating them in the technical bits. With a fiery motor, lightning-fast response, and agile handling, the KTM 150 XC-W remains a worthy competitor on any enduro stage.
Note: Competition-focused offroad model. Confirm the model-specific homologation/road-legal status before listing it as road legal.
Key Specifications
- Engine: 1-cylinder, 2-stroke engine
- Displacement: 143.99 cm³
- Transmission: 6-speed
- Fuel system: Keihin EFI, throttle body 39 mm
- Front suspension: WP XACT-USD, Ø 48 mm
- Rear suspension: WP XPLOR shock absorber with PDS
- Seat height: 963 mm
- Ground clearance: 347 mm
- Tank capacity: 9 l
- Weight without fuel: 96.4 kg
| Brand | KTM |
|---|---|
| Year | |
| Engine - Design | 1-cylinder, 2-stroke engine |
| Engine - Displacement | 143.99 cm³ |
| Engine - Transmission | 6-speed |
| Engine - Fuel mixture | Keihin EFI, throttle body 39 mm |
| Engine - EMS | Vitesco Technologies EMS |
| Engine - Clutch drive teeth | 73 |
| Engine - Primary drive | 23:73 |
| Engine - Clutch | Brembo hydraulics, Wet multi-disc DS clutch |
| Engine - Clutch type | DS multi-disc wet clutch |
| Engine - Clutch operation | Brembo hydraulics |
| Engine - Engine cylinder | Single cylinder |
| Engine - Engine stroke | 2-Stroke |
| Chassis - Frame design | Central double-cradle-type 25CrMo4 steel |
| Chassis - Front brake | Disc brake |
| Chassis - Rear brake | Disc brake |
| Chassis - Rear subframe | Aluminum-reinforced polyamide |
| Chassis - Chain | 520 X-Ring |
| Suspension - Front suspension | Ø 48 mm, WP XACT-USD |
| Suspension - Rear suspension | WP XPLOR shock absorber with PDS |
| SUSPENSION TRAVEL (FRONT) | 300 mm |
| SUSPENSION TRAVEL (REAR) | 310 mm |
| Suspension - Front adjustment | Compression and rebound adjustable |
| Suspension - Rear adjustment | Compression and rebound adjustable, Preload Adjuster |
| Dimensions - Seat height | 963 mm |
| Dimensions - Ground clearance | 347 mm |
| Dimensions - Tank capacity | 9 l |
| Dimensions - Weight no fuel | 96.4 kg |
