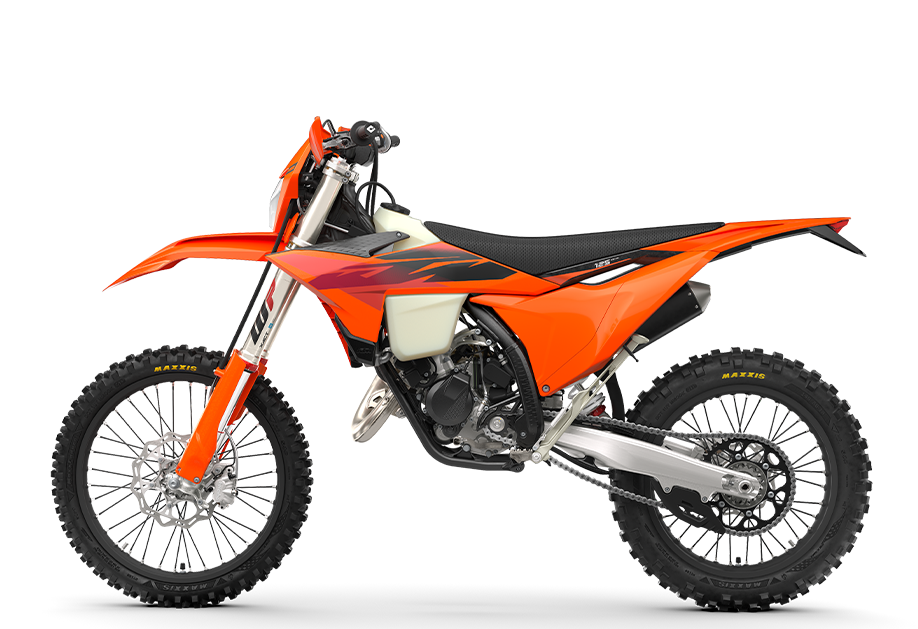

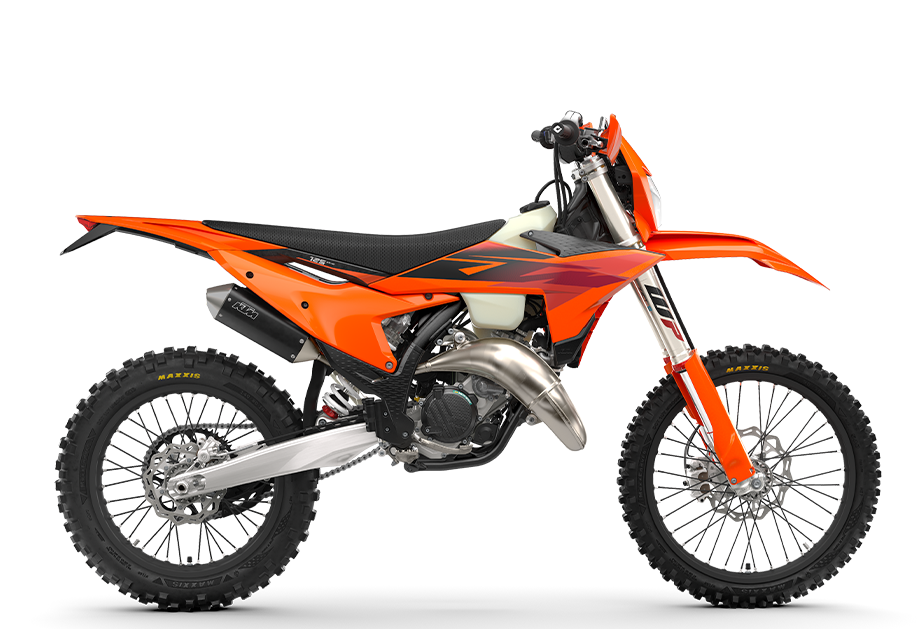

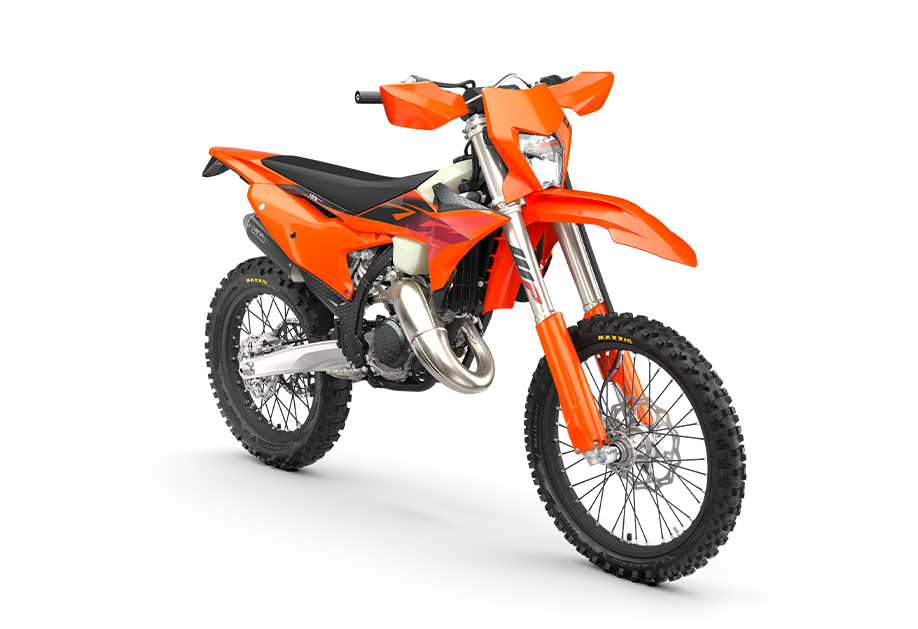

2027 KTM 125 XC-W
The 2027 KTM 125 XC-W is a competition-focused 125 cc two-stroke enduro motorcycle. The South African manufacturer page identifies this model as a competition-only motorcycle without street-legal homologation.
Key Specifications
- Engine: 1-cylinder, 2-stroke engine
- Displacement: 124.8 cm³
- Transmission: 6-speed
- Fuel system: Keihin EFI, throttle body 39 mm
- Front suspension: WP XACT-USD, Ø 48 mm
- Rear suspension: WP XPLOR shock absorber with PDS
- Seat height: 963 mm
- Ground clearance: 347 mm
- Tank capacity: 9 l
- Weight without fuel: 96.2 kg
Competition note: This is a competition-only model with no street-legal homologation.
Source: KTM South Africa model page | Technical specifications
| Brand | KTM |
|---|---|
| Year | |
| Engine - Design | 1-cylinder, 2-stroke engine |
| Engine - Displacement | 124.8 cm³ |
| Engine - Transmission | 6-speed |
| Engine - Fuel mixture | Keihin EFI, throttle body 39 mm |
| Engine - EMS | Vitesco Technologies EMS |
| Engine - Clutch drive teeth | 73 |
| Engine - Primary drive | 23:73 |
| Engine - Clutch | Brembo hydraulics, Wet multi-disc DS clutch |
| Engine - Engine cylinder | Single cylinder |
| Engine - Engine stroke | 2-Stroke |
| Chassis - Frame design | Central double-cradle-type 25CrMo4 steel |
| Chassis - Front brake | Disc brake |
| Chassis - Rear brake | Disc brake |
| Chassis - Rear subframe | Aluminum-reinforced polyamide |
| Chassis - Chain | 520 X-Ring |
| Suspension - Front suspension | Ø 48 mm, WP XACT-USD |
| Suspension - Rear suspension | WP XPLOR shock absorber with PDS |
| SUSPENSION TRAVEL (FRONT) | 300 mm |
| SUSPENSION TRAVEL (REAR) | 310 mm |
| Suspension - Front adjustment | Compression and rebound adjustable |
| Suspension - Rear adjustment | Compression and rebound adjustable, Preload Adjuster |
| Dimensions - Seat height | 963 mm |
| Dimensions - Ground clearance | 347 mm |
| Dimensions - Tank capacity | 9 l |
| Dimensions - Weight no fuel | 96.2 kg |
