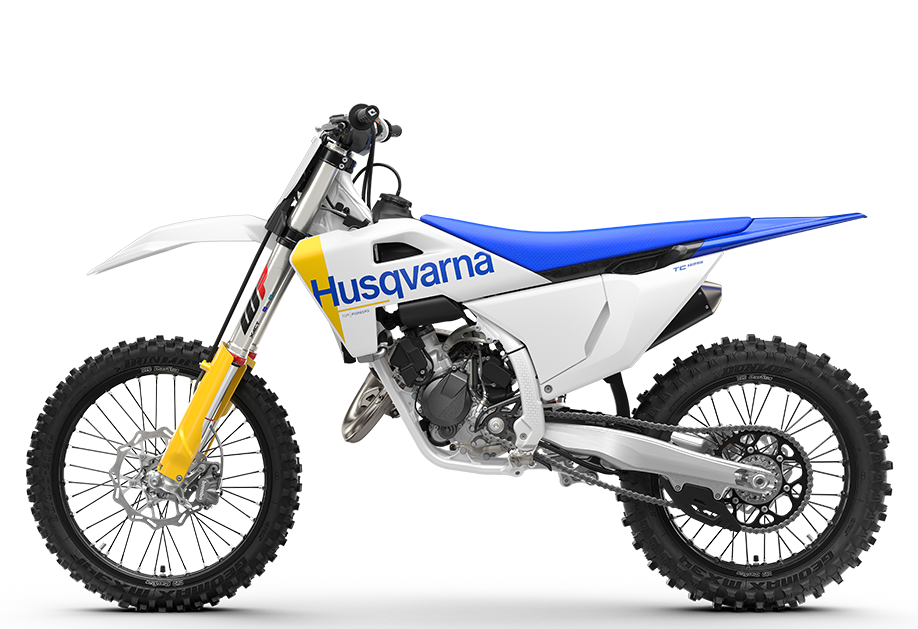

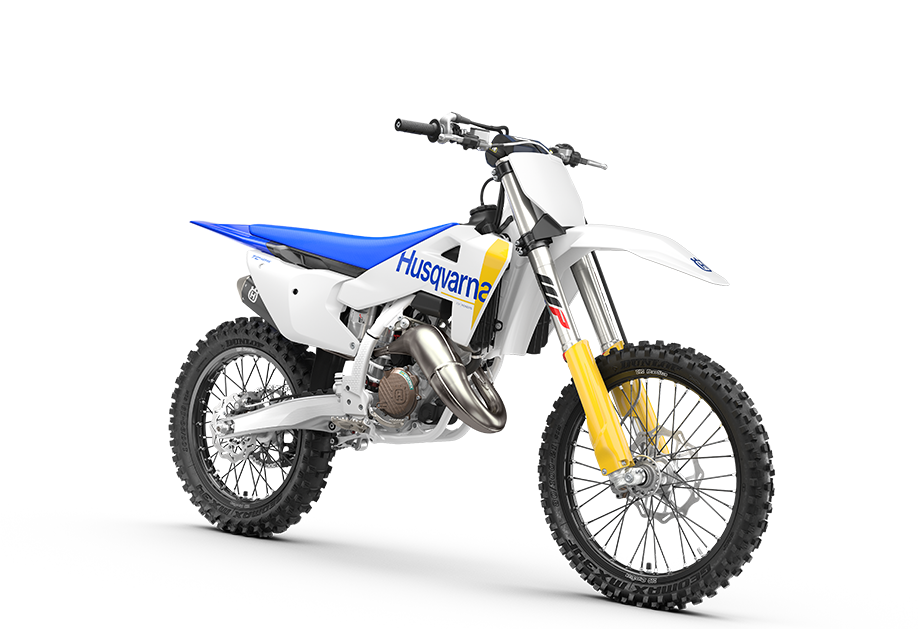

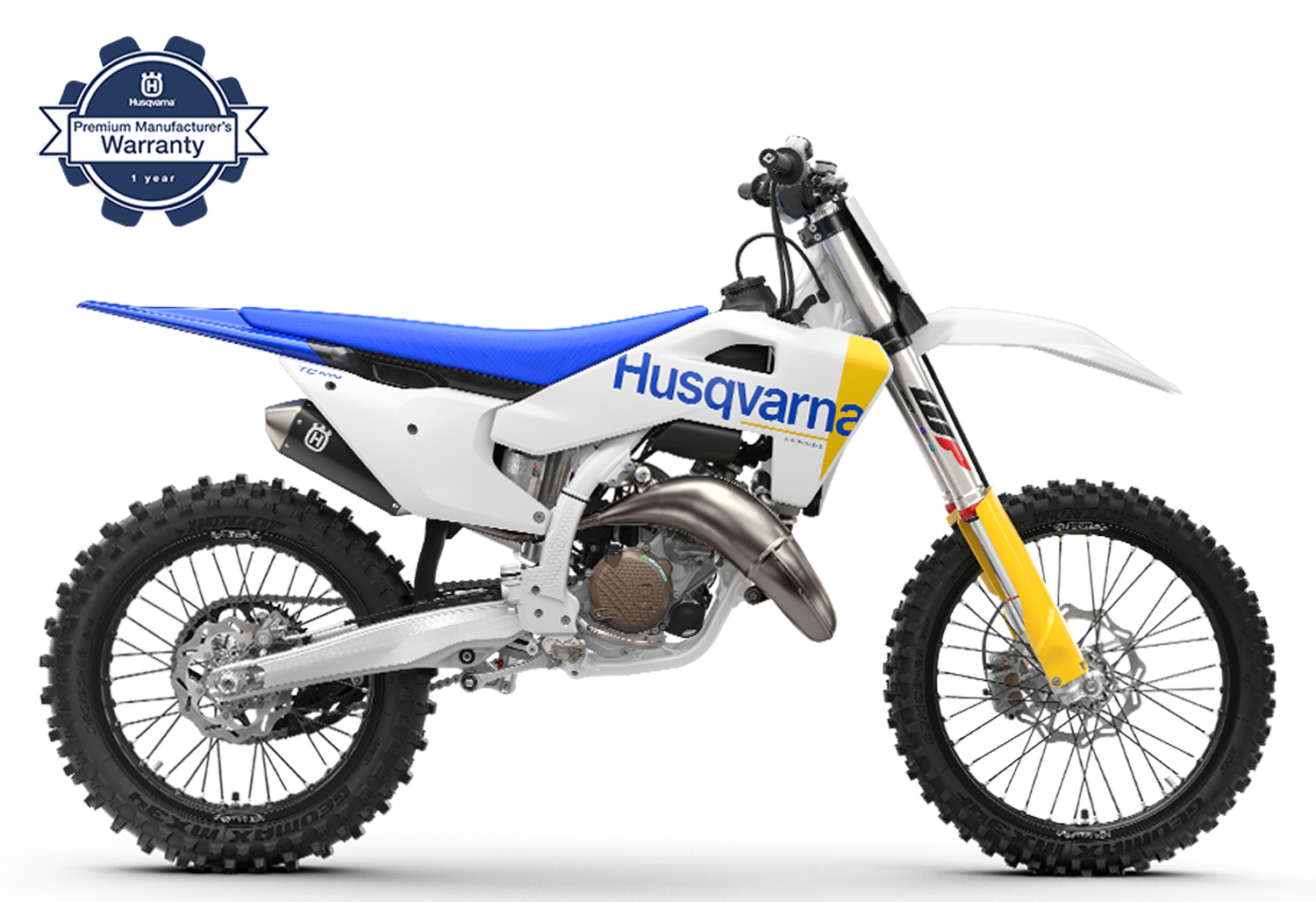

2027 Husqvarna TC 125
The TC 125 engine sets the standard for performance in the highly competitive 125 cc class and weighs in at just 17.9 kg. The lightweight engine is manufactured using the latest engineering techniques to produce more torque while retaining its high-revving 2-stroke character. With the rotating mass inside the engine centralised, the TC 125 offers light and agile handling to the benefit of both beginners and professional racers.
Note: Model-specific use, homologation and road-legal status should be confirmed before publishing.
Key Specifications
- Engine: 1-cylinder, 2-stroke engine
- Displacement: 124.8 cm³
- Transmission: 6-speed
- Fuel system: Keihin EFI, throttle body 39 mm
- Front suspension: WP XACT-USD, Ø 48 mm
- Rear suspension: WP XACT Monoshock with linkage
- Seat height: 946 mm
- Ground clearance: 350 mm
- Tank capacity: 7.2 l
- Weight without fuel: 92.2 kg
| Brand | Husqvarna |
|---|---|
| Year | |
| Husqvarna Category | Motocross |
| Engine - Primary drive | 23:73 |
| Engine - Transmission | 6-speed |
| Engine - Battery capacity | 2 Ah |
| Engine - Cooling | Liquid cooled |
| Engine - Secondary gear ratio | 13:50 |
| Engine - Starter | Electric starter |
| Engine - Stroke | 54.5 mm |
| Engine - Bore | 54 mm |
| Engine - Clutch | Brembo hydraulics, Wet multi-disc DS clutch |
| Engine - Displacement | 124.8 cm³ |
| Engine - EMS | Vitesco Technologies EMS |
| Engine - Design | 1-cylinder, 2-stroke engine |
| Engine - Fuel mixture | Keihin EFI, throttle body 39 mm |
| Chassis - Weight no fuel | 92.2 kg |
| Chassis - Tank capacity | 7.2 l |
| Chassis - Wheelbase | 1490 mm |
| Chassis - Front brake diameter | 260 mm |
| Chassis - Rear brake diameter | 220 mm |
| Chassis - Front brake | Disc brake |
| Chassis - Rear brake | Disc brake |
| Chassis - Chain | 520, Non-sealed |
| Chassis - Frame design | Central double-cradle-type 25CrMo4 steel |
| Chassis - Front suspension | Ø 48 mm, WP XACT-USD |
| Chassis - Ground clearance | 350 mm |
| Chassis - Handlebar | Aluminium Ø 28/22 mm, Pro Taper |
| Chassis - Rear suspension | WP XACT Monoshock with linkage |
| Chassis - Seat height | 946 mm |
| Chassis - Silencer | Aluminium |
| Chassis - Steering head angle | 63.9 ° |
| Chassis - Rear subframe | Aluminum-reinforced polyamide |
| Chassis - Travel front | 305 mm |
| Chassis - Travel rear | 293 mm |
| Chassis - Tyre dimensions | 80/100; 100/90 |
| Chassis - Wheels | 1.6 x 21"; 2.15 x 19" |
| Wheels | |
