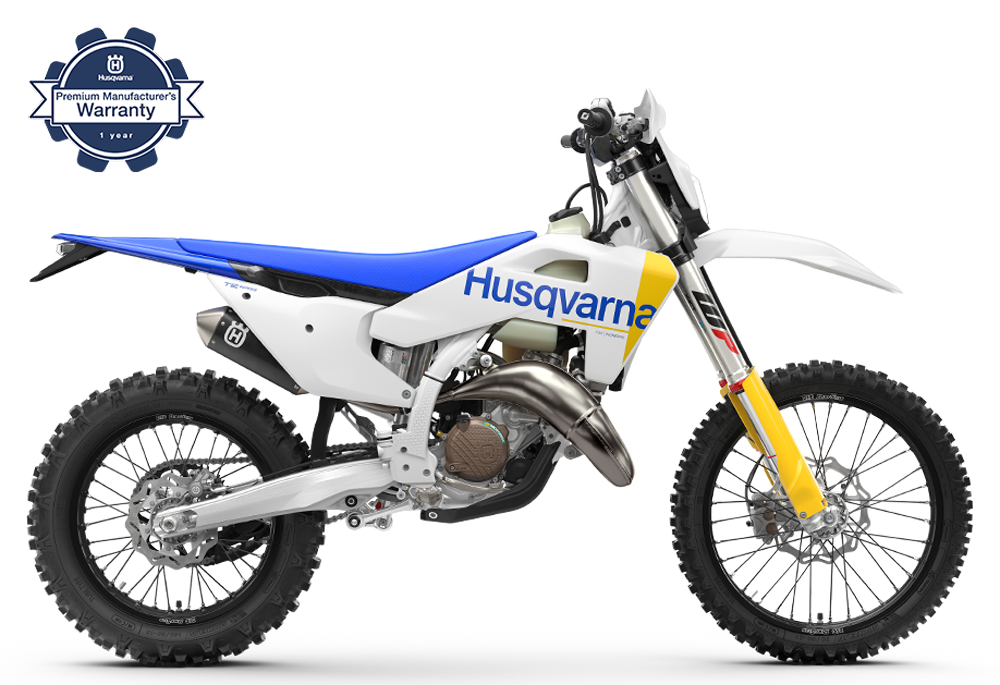

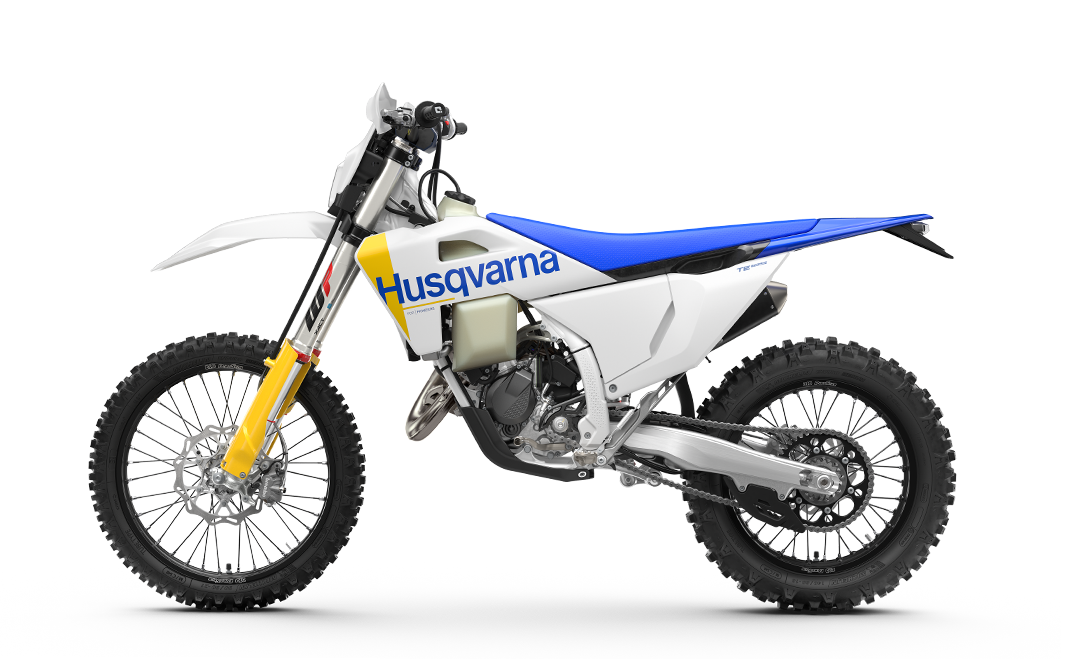

2027 Husqvarna TE 125
All of the latest technical innovations ensure the TE 125 engine delivers unrivalled performance and best-in-class rideability. Fuelled by Throttle Body Injection (TBI), maximum torque and strong power throughout the rev-range ensures the TE 125 is easy to ride for both youngsters and hobby riders alike. The compact engine is designed to position all internal components to assist with centralising mass, which plays a vital role in the lightweight and agile handling of this exceptional machine.
Note: Model-specific use, homologation and road-legal status should be confirmed before publishing.
Key Specifications
- Engine: 1-cylinder, 2-stroke engine
- Displacement: 124.8 cm³
- Transmission: 6-speed
- Fuel system: Keihin EFI, throttle body 39 mm
- Front suspension: WP XACT cartridge Ø 48 mm
- Rear suspension: WP XACT Monoshock with linkage
- Seat height: 952 mm
- Ground clearance: 359 mm
- Tank capacity: 8.5 l
- Weight without fuel: 99.8 kg
| Brand | Husqvarna |
|---|---|
| Year | |
| Husqvarna Category | Enduro |
| Engine - Primary drive | 23:73 |
| Engine - Transmission | 6-speed |
| Engine - Battery capacity | 2 Ah |
| Engine - Cooling | Liquid cooled |
| Engine - Secondary gear ratio | 13:48 |
| Engine - Starter | Electric starter |
| Engine - Stroke | 54.5 mm |
| Engine - Bore | 54 mm |
| Engine - Clutch | Brembo hydraulics, Wet multi-disc DS clutch |
| Engine - Displacement | 124.8 cm³ |
| Engine - EMS | Vitesco Technologies EMS |
| Engine - Design | 1-cylinder, 2-stroke engine |
| Engine - Fuel mixture | Keihin EFI, throttle body 39 mm |
| Chassis - Weight no fuel | 99.8 kg |
| Chassis - Tank capacity | 8.5 l |
| Chassis - Wheelbase | 1489 mm |
| Chassis - Front brake diameter | 260 mm |
| Chassis - Rear brake diameter | 220 mm |
| Chassis - Chain | 520 X-Ring |
| Chassis - Frame design | Central double-cradle-type 25CrMo4 steel |
| Chassis - Front suspension | WP XACT cartridge Ø 48 mm |
| Chassis - Ground clearance | 359 mm |
| Chassis - Handlebar | Aluminium Ø 28/22 mm, Pro Taper |
| Chassis - Rear suspension | WP XACT Monoshock with linkage |
| Chassis - Seat height | 952 mm |
| Chassis - Silencer | Aluminium |
| Chassis - Steering head angle | 63.9 ° |
| Chassis - Rear subframe | Aluminum-reinforced polyamide |
| Chassis - Travel front | 300 mm |
| Chassis - Travel rear | 300 mm |
| Chassis - Tyre dimensions | 90/90; 140/80 |
| Chassis - Wheels | 1.60 x 21"; 2.15 x 18" |
| Wheels | |
| Wheelbase |
